Description

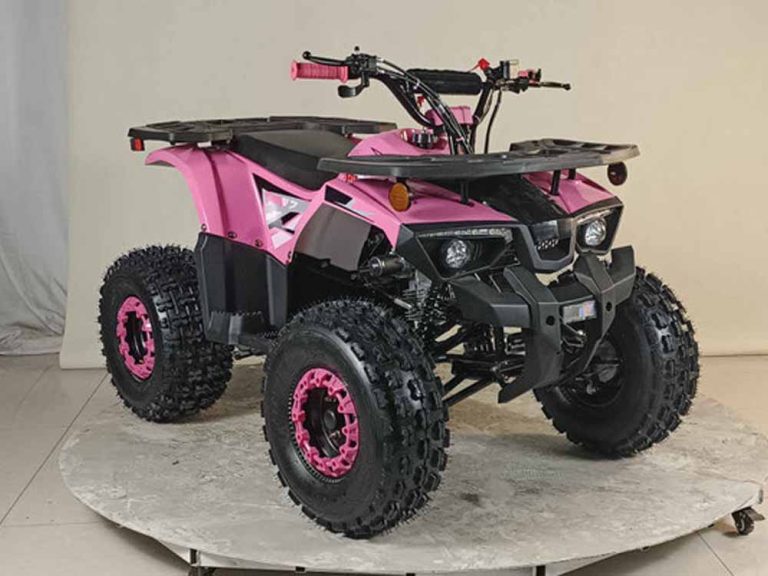

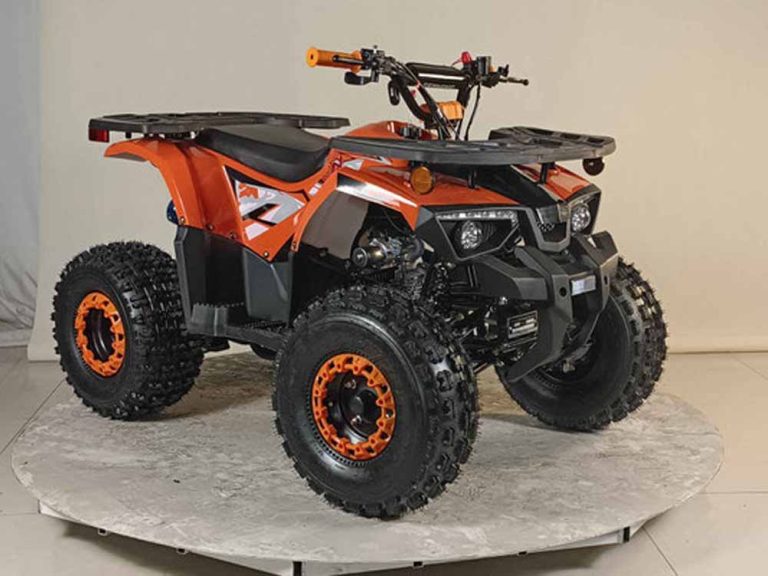

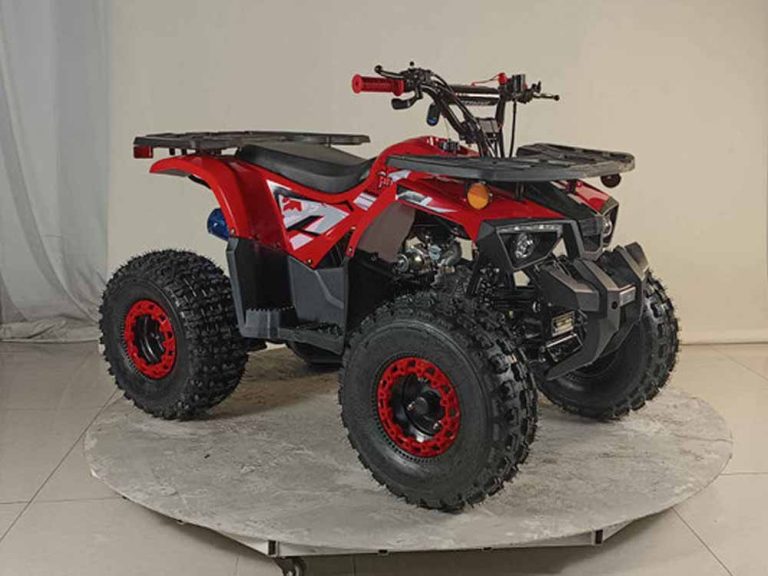

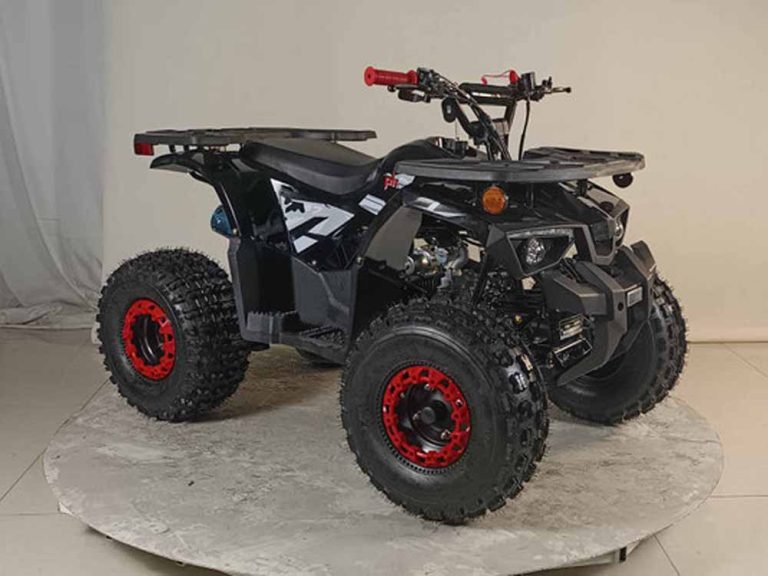

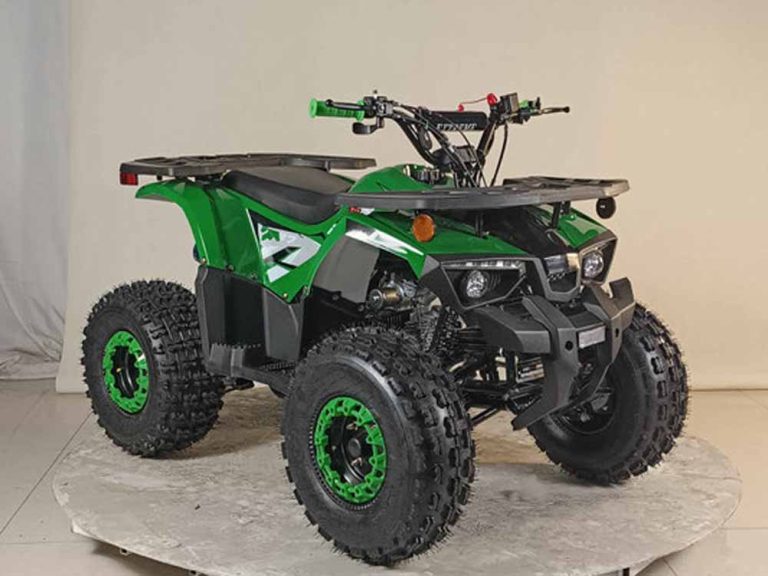

Vitacci Phantom 125 ATV

Due to high demand this time of year availibilty is limited. Please confirm availibility with us.

ENGINE

• Type: 125cc, Air cooled, 4-stroke, 1-cylinder

• Bore x Stroke: 52.4mm x 55.5mm

• Compression Ratio: 9.1:1

• Carburetor: PZ20

• Ignition: CDI

• Starting System: Electric start

• Transmission: Reverse – Neutral – Forward (R-N-F)

• Drive Train: Chain Drive

• Max. Torque: 8.0 N·m / 5500 rpm

• Max. Power: 5.3 kW / 7500 rpm

CHASSIS

• Front Suspension: Independent double swing arm

• Rear Suspension: Single swing arm

• Front Brakes: Drum

• Rear Brakes: Ventilated Hydraulic disc

• Front Tires: 19 x 7-8 radial

• Rear Tires: 18 x 9.5-8 radial

DIMENSIONS

• L x W x H: 1440 mm x 940 mm x 940 mm

• Seat Height: 710 mm

• Wheelbase: 960 mm

• Ground Clearance: 135 mm

• Front Track: 760 mm

• Rear Track: 670 mm

• Battery: 12V / 5Ah

• Fuel Capacity: 2 L

• Dry Weight: 106 kg

• Max. Load: 75 kg

• Package Size: 53.9 x 30.3 x 24.8 in

• Loading Quantity: 96 pcs / 40HQ

MAIN PERFORMANCE

• Max. Speed: 48 km/h

• Fuel Consumption: 2.6 L / 100 km

• Starting Time: ≤ 15 s

• Brake Distance: At 30 km/h ≤ 6.5 m

Available Colors

• Black
• Blue
• Green
• red
• Orange
• Pink
